AX61 Elite case Left Tempered Glass side panel

AX61 Elite Left Glass side panel

Unique Design & Powerful Heat Dissipation
The front panel adopts an ample mesh design with geometrical styling for increasing airflow and dust prevention.
The ARGB lighting creates various visual effects.

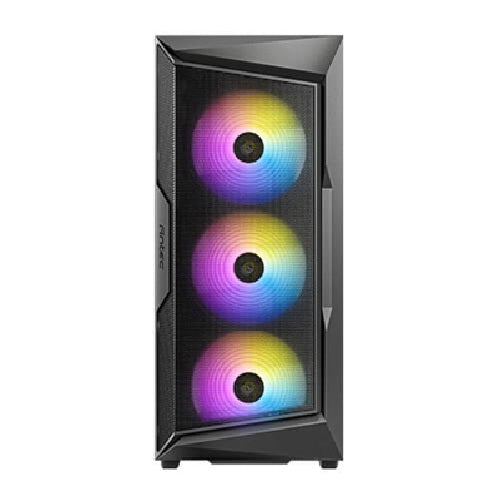

High-Airflow Front Panel
All-round airflow paths provide highly efficient cooling. Air intakes at the front and bottom ensure outstanding heat dissipation.

SPECIFICATIONS
Main Spec
Dimensions 405 x 200 x 449mm (DWH)
Form Factor Mid Tower
Materials Steel + Plastic
Mainboard Support ATX, Micro-ATX, ITX
Front Access & Controls Power, LED Control Button, 2 x USB 2.0, 1 x USB 3.0 , HD-AUDIO
Side Panel 4MM Tempered glass

Drive Bays
Expansion Slots 7
3.5' /2.5' 2/1
2.5' 2

Fan Support
Front 3 x 120mm
Top 2 x 120mm / 2 x 140mm
Power supply 2 x 120mm
Rear 1 x 120mm
Included Fan(s) 3 x 120mm ARGB fans in front + 1x 120mm ARGB fan in rear

Radiator Support
Front 120 / 240 / 360mm

Clearance
Max GPU Length ≤ 320mm
Max CPU Cooler Height ≤ 160mm
Max PSU Length (Include cable) ≤ 165mm(with HDD)
(Include cable) ≤ 345mm(without HDD)

Miscellaneous
Dust Filter Top / Bottom
Net Weight 4.84 Kgs
Gross Weight 5.62 Kgs
Warranty 1 Year
UPC# 0-761345-10069-4
