MSI Cubi NUC 1M-016BAU miniPC barebone, Black Intel Core 5-120U DDR5 2*M.2 2*HDMI *TBT 2 LAN/Wifi6E Card Reader Switch Cabl 3Y

MSI Cubi NUC 1M-016BAU miniPC barebone, Black, Core 5-120U/Up to DDR5//max64GB/2*M.2/2*HDMI/2*TBT/2*LAN/Wifi6E/Card Reader/Switch Cable/3Y

SPECIFICATION

Chipset Soc

Memory
Module Type SO-DIMM
Memory Slot(Total) 2
Memory Slot(Free) 2
Max Capacity Max 64GB

Processor
CPU Number Intel Core 5 Processor 120U
CPU Clock 1.4GHz
CPU Cores 10
TDP 15W
Max Turbo Frequency up to 5.00 GHz
Cache 12 MB Intel® Smart Cache
Threads 12

Audio
Audio Chipset Realtek ALC256
Audio Type 2.1 Channel HD Audio

Storage
M.2 slots(Total) 2
M.2 slots(Free) 2
2.5' Drive Bays(Total) 1
2.5' Drive Bays (Free) 1

Communications
WLAN Version Wi-Fi 6E+BT
BT Version 5.3

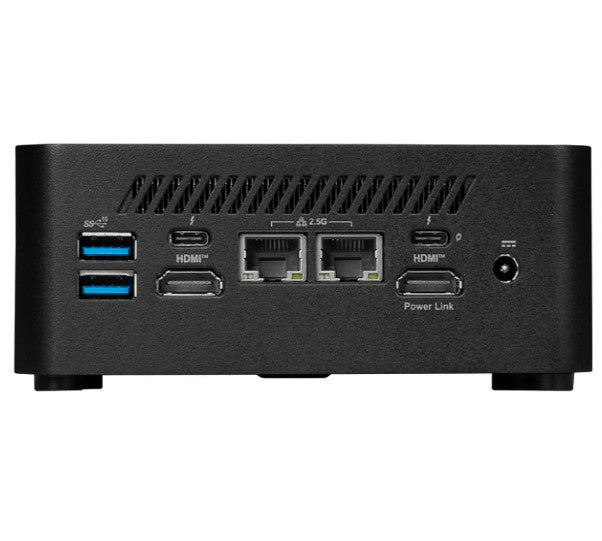

I/O Ports (Side)
USB 3.2 Gen 2 Type A (R) 2
RJ45 2
HDMI out 2x (v2.0)

Warranty 36months

Dimension Weight
Weight (Net kg) 0.625
Weight (Gross kg) 1.45
Product Dimension (WxDxH) (mm) 135.6 x 132.5 x 50.10

Product Dimension (WxDxH) (inch) 5.34 x 5.22 x 1.97
Inside Carton Dimension (WxDxH) (mm) 205 x 220 x 94
Inside Carton Dimension (WxDxH) (inch) 8.07 x 8.66 x 3.7
Net Weight (lbs) 1.38
Gross Weight (lbs) 3.2

VESA
VESA size 100 x 100 mm

Regulatory Compliance
Regulatory Compliance FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
